Water and Powder Mixing Pump

Water and powder mixing pump stirs fully the powder material and liquid with impeller rotating in high speed,and puts out the mixture required. The highest temperature of the machine is 80 degree and it is especially suitable to produce dairy products of milk remade, such as: mix milk powder,whey powder, dextrin powder etc with liquid, also it is used to manufacture syrup and others drinks. It makes liquid and material mixed quickly so as to achieve the ideal benefit.

Classification of Water and Powder Mixing Pump

1、According to structure
Vertical water and powder mixing pump and split water and powder mixing pump. And each type has various models for choose.
2、According to appearance
Sanitary water and powder mixing pump and common water and powder mixing pump .

Usages of Water and Powder Mixing Pump

It is widely used in food industry, medicine industry, chemical industry, daily industry etc such as soy, fruit sauce, peanut sauce, milk sauce, dyestuff, flower powder, etc.

Technical Parameters of Water and Powder Mixing Pump

Name

Model

Main Technical Parameter

Vertical Water and Power Mixing Pump

THJ-L20

Rated flow:

20000 L/H

Max. pressure head:

3*10 mm

Impeller diameter:

￠170mm

Liquid-in pipe diameter:

￠38*1.5mm

Material-in pipe diameter:

80mm

Liquid –out pipe diameter:

￠38*1.5mm

Motor

Power:

4KW

Speed:

2900r/m

Overall size:

420*420*1050mm

Weight:

82KG

Split Water and Power Mixing Pump

THJ-F20

Rated flow:

20000L/H

Max. pressure head:

3*10 mm

Impeller diameter:

￠170mm

Liquid-in pipe diameter:

￠40*1.5mm

Material-in pipe diameter:

80mm

Liquid –out pipe diameter:

￠40*1.5mm

Motor

Power:

5.5KW

7.5KW

Speed:

2000-2900r/m

Overall size:

950*450*1150mm

Weight:

220KG

Notes:

1. The technical parameters of water and powder mixing pump in the chart are standard configuration. Any specific requirements, please let us know.

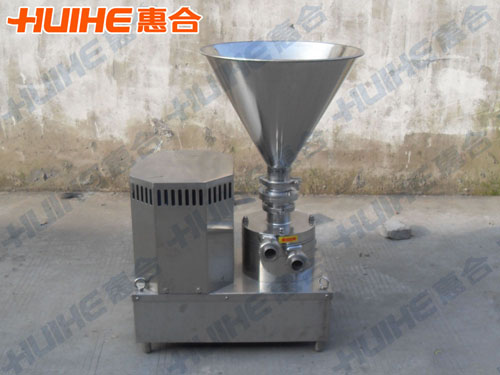

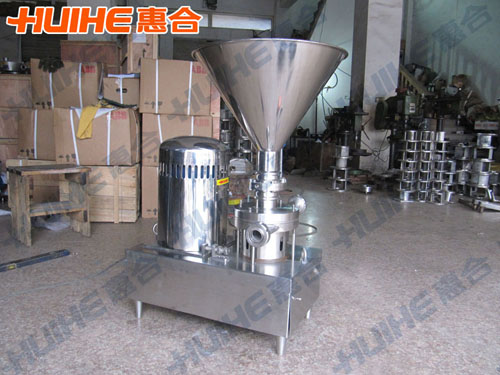

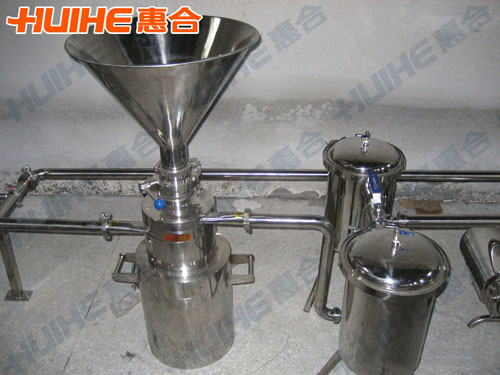

Water and Powder Mixing Pump Finished Picture
